Accurex
TX Spider
Extra-flat drive-through platform scale with integrated ramps
Capacity & Accuracy Range
1500 kg with resolution of 50 g
Durability & Build Quality
Lacquered steel structure with baked epoxy paint and a 5 mm thick diamond-pattern steel plate as well as four nickel-plated steel load cells with IP67 protection
Connectivity & Integration
TX Spider includes a TX LED indicator connected via a 4 m cable, allowing the display to be positioned remotely on a table or wall using the included stand.
Continuous weighing across the platform without height barriers
Continuous weighing across the platform without height barriers

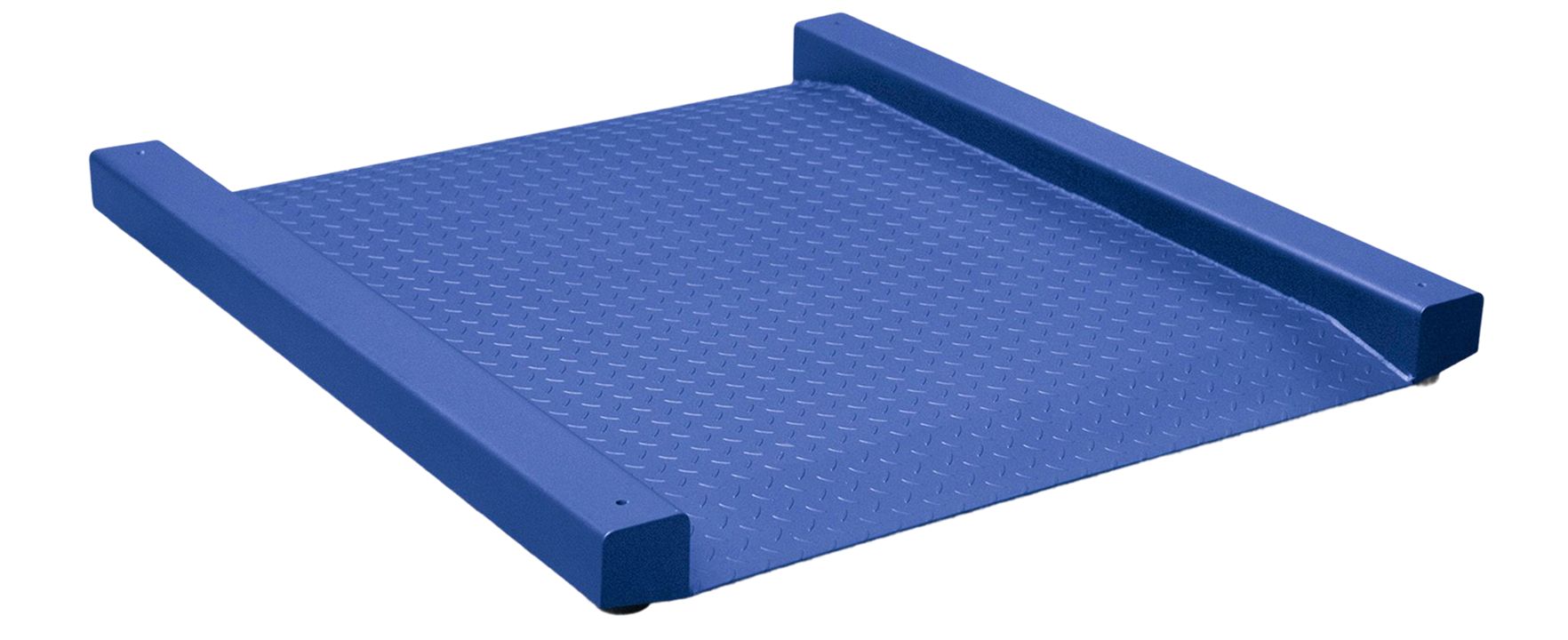

Accurex TX Spider is an extra-flat industrial platform scale designed for weighing trolleys, racks, and wheeled containers directly on the platform. The integrated ramps allow loads to be rolled onto the weighing surface smoothly, eliminating lifting effort and reducing handling strain during daily operations.
With a total height of just 35 mm, fast stabilisation in under two seconds, and a robust steel construction, TX Spider supports efficient weighing in logistics, production, and processing environments where wheeled loads are handled continuously.
Accurex TX Spider is an extra-flat industrial platform scale designed for weighing trolleys, racks, and wheeled containers directly on the platform. The integrated ramps allow loads to be rolled onto the weighing surface smoothly, eliminating lifting effort and reducing handling strain during daily operations.
With a total height of just 35 mm, fast stabilisation in under two seconds, and a robust steel construction, TX Spider supports efficient weighing in logistics, production, and processing environments where wheeled loads are handled continuously.
Features
Features
Designed for smooth load transfer across the weighing surface
Designed for smooth load transfer across the weighing surface
Extra-flat platform design and weighing functions
Extra-flat platform design and weighing functions
With an overall height of just 35 mm, TX Spider minimises elevation differences, supporting safe and controlled loading of wheeled equipment. Core weighing functions such as zero adjustment, tare, and accumulation of weights support straightforward operation during continuous weighing processes.
With an overall height of just 35 mm, TX Spider minimises elevation differences, supporting safe and controlled loading of wheeled equipment. Core weighing functions such as zero adjustment, tare, and accumulation of weights support straightforward operation during continuous weighing processes.
Diamond-pattern steel plate for secure positioning
Diamond-pattern steel plate for secure positioning
The 5 mm thick epoxy-treated diamond plate provides a stable, slip-resistant surface that helps keep wheeled loads securely positioned during weighing.
The 5 mm thick epoxy-treated diamond plate provides a stable, slip-resistant surface that helps keep wheeled loads securely positioned during weighing.
Diamond-pattern steel plate for secure positioning
Diamond-pattern steel plate for secure positioning
The 5 mm thick epoxy-treated diamond plate provides a stable, slip-resistant surface that helps keep wheeled loads securely positioned during weighing.
The 5 mm thick epoxy-treated diamond plate provides a stable, slip-resistant surface that helps keep wheeled loads securely positioned during weighing.
Height-adjustable feet for precise levelling
Height-adjustable feet for precise levelling
Adjustable feet allow the platform to be levelled accurately and adapted to uneven floor surfaces, supporting stable and consistent weighing results.
Adjustable feet allow the platform to be levelled accurately and adapted to uneven floor surfaces, supporting stable and consistent weighing results.
Internal rechargeable battery for autonomous operation
Internal rechargeable battery for autonomous operation
TX Spider is powered by 220 V mains supply and includes an internal rechargeable battery that charges automatically during use, enabling continuous operation without interruption.
TX Spider is powered by 220 V mains supply and includes an internal rechargeable battery that charges automatically during use, enabling continuous operation without interruption.
Performance,
by the numbers
by the numbers
Spec 1.
Weighing Performance
Capacity Range
300kg up to 1500kg
Resolution
From 50g up to 200g
Trade Approval
No
Tare Memories
Standard Tare
Weighing Units
kg
Weighing Filters
Animal weighing function
Limits Function
Upper and lower limit control with configurable alarm modes for out-of-range conditions
Spec 2.
Connectivity
Connectivity
Indicator: RS-232
Spec 3.
Dimensions & Construction
Material
Platform: Robust lacquered steel structure
Indicator: ABS
Indicator: ABS
IP Protection
Indicator: IP-65
Plate Dimensions
800x1100mm up to 1200x1500mm
Spare parts & compatibility for a
modular & scalable design
modular & scalable design
Spare parts & compatibility for a
modular & scalable design
modular & scalable design
Calibration & Quality Assurance
Calibration & Quality Assurance
Optional ISOCAL calibration certificates are available for Accurex TX Spider. These certificates provide individualised calibration data to support quality assurance systems, internal audits and compliance requirements in industrial environments.
Optional ISOCAL calibration certificates are available for Accurex TX Spider. These certificates provide individualised calibration data to support quality assurance systems, internal audits and compliance requirements in industrial environments.
Find the right solution
for your business
for your business
Capacity Range
300kg up to 1500kg
Resolution
From 50g up to 200g
Trade Approval
No
Weighing Units
kg
Connectivity
N/A
Material
Robust lacquered steel structure
IP Protection
N/A
Plate Dimensions
800x1100mm up to 1200x1500mm
