Pro
MK
Digital weighing modules designed for industrial installations
Capacity & Accuracy Range
Complete weighing system for capacities up to 20,000 kg, depending on module configuration.
Durability & Build Quality
Anti-tip device and vibration compensators, available in nickel-plated steel or AISI 304 stainless steel.
Connectivity & Integration
RS-232-C as standard, with optional Wi-Fi
Flexible digital weighing for tanks, hoppers, and silos.
Flexible digital weighing for tanks, hoppers, and silos.
GRAM MK is a complete digital weighing solution designed for the weighing of tanks, hoppers, and silos. The system consists of four MK weighing modules, a connection box, and a fully digital Xtrem® module that enables fast installation and secure data handling. With built-in stabilisers to compensate for vibration and an anti-tip safety system, GRAM MK delivers reliable, stable weighing even in demanding industrial installations, while offering maximum flexibility for integration into existing systems.
GRAM MK is a complete digital weighing solution designed for the weighing of tanks, hoppers, and silos. The system consists of four MK weighing modules, a connection box, and a fully digital Xtrem® module that enables fast installation and secure data handling. With built-in stabilisers to compensate for vibration and an anti-tip safety system, GRAM MK delivers reliable, stable weighing even in demanding industrial installations, while offering maximum flexibility for integration into existing systems.
Features
Features
Digital weighing modules designed for industrial installations
Digital weighing modules designed for industrial installations
Complete modular weighing system
Complete modular weighing system

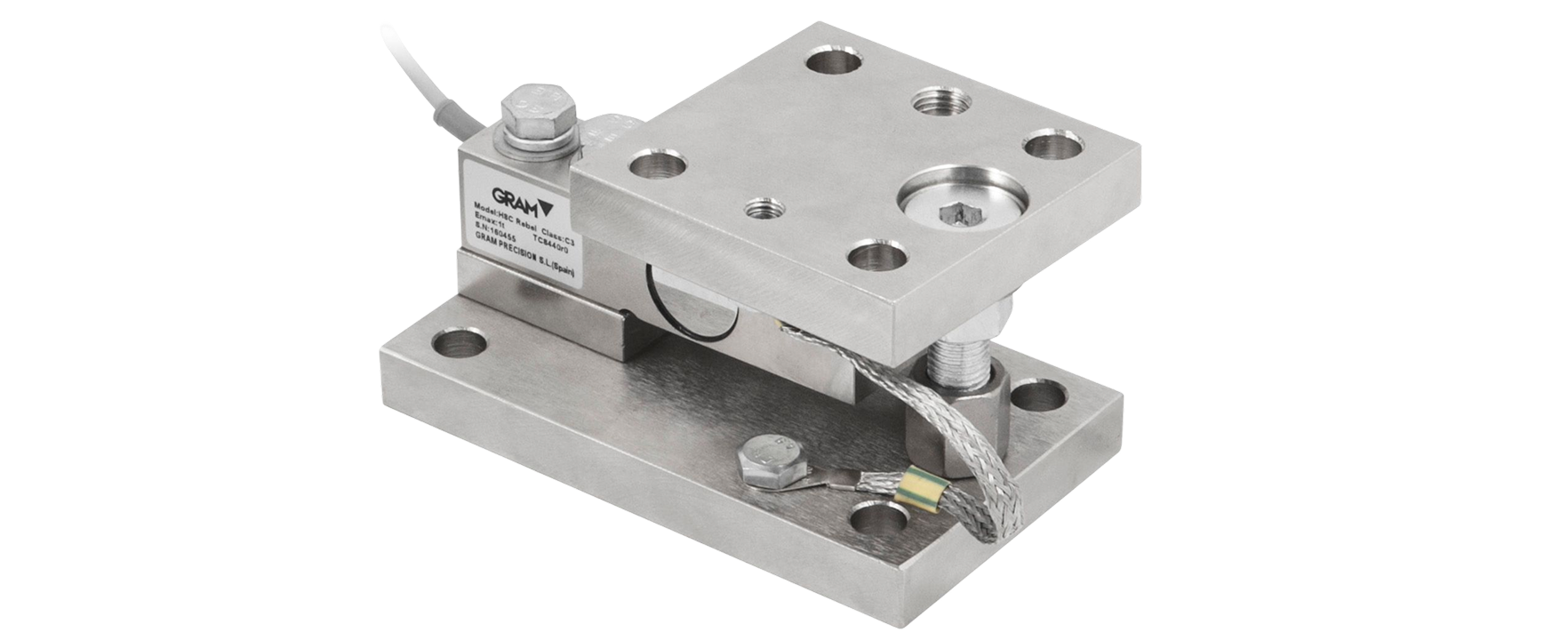

GRAM MK consists of four independent weighing modules, a junction box, and a digital Xtrem® module, forming a complete solution for weighing tanks, silos, and hoppers.
GRAM MK consists of four independent weighing modules, a junction box, and a digital Xtrem® module, forming a complete solution for weighing tanks, silos, and hoppers.
Anti-tip safety and vibration compensation
Anti-tip safety and vibration compensation
Each module incorporates an anti-tip device and stabilisers to compensate for vibration, ensuring safe operation and stable weighing results.
Each module incorporates an anti-tip device and stabilisers to compensate for vibration, ensuring safe operation and stable weighing results.
Calibration without test weights
Calibration without test weights
The Calready system allows electronic calibration without the use of weights once installed, simplifying commissioning while maintaining reliable accuracy.
The Calready system allows electronic calibration without the use of weights once installed, simplifying commissioning while maintaining reliable accuracy.
Secure data stored inside the system
Secure data stored inside the system
All critical adjustment and calibration data are stored directly in the digital Xtrem® module, protecting data integrity and ensuring long-term stability.
All critical adjustment and calibration data are stored directly in the digital Xtrem® module, protecting data integrity and ensuring long-term stability.
Powered by
Powered by
Xtrem® Technology
Xtrem® Technology
Our own digital core — designed by Gram.
Xtrem® is Gram’s in-house technology that redefines precision. Built into every platform, it converts weight into secure digital data with stability that lasts — delivering consistent, traceable accuracy in every environment.
Always connected, always reliable. Xtrem® links your scales with Wi-Fi, Ethernet, or PC and mobile apps, turning weighing into real-time intelligence. Fast to install, easy to maintain, and ready for Industry 4.0 — it keeps your performance and your productivity moving forward.
Our own digital core — designed by Gram.
Xtrem® is Gram’s in-house technology that redefines precision. Built into every platform, it converts weight into secure digital data with stability that lasts — delivering consistent, traceable accuracy in every environment.
Always connected, always reliable. Xtrem® links your scales with Wi-Fi, Ethernet, or PC and mobile apps, turning weighing into real-time intelligence. Fast to install, easy to maintain, and ready for Industry 4.0 — it keeps your performance and your productivity moving forward.
Our Indicators at a Glance
Each platform is compatible with a range of GRAM indicators. Explore the options below — then select your combination to see the exact specifications.
GRAM Z8i — Next-Gen Touchscreen Terminal
Stainless steel IP65 terminal running GRAM Control™ software on a 10.1″ capacitive touchscreen, with internal SQL database for users, products, tares, and weighing records. Built-in label designer with multiple integration options for advanced industrial label printers. Connect and switch between multiple Xtrem® platforms on the same network, centralising classification, tare management, and traceability in one interface. Ethernet and RS232C connectivity for ERP and peripheral integration.
GRAM Z8 — Connected Terminal for Smart Operations
Connected terminal with WiFi, Ethernet, and RS232C running GRAM Control™ software on a 10.1″ capacitive touchscreen, with internal SQL database for users, products, tares, and weighing records. Built-in label designer with multiple integration options for advanced industrial label printers. API and ERP integration for real-time data exchange. One terminal to manage multiple Xtrem® platforms, turning every weighing into structured, actionable data.
GRAM K3iW — Wireless Stainless Industrial Indicator
AISI 304 stainless steel wireless indicator with IP67 protection, designed for hygiene-critical and corrosive environments. Direct wireless link to Xtrem® platforms up to 10 metres, removing fixed cabling from food processing, pharmaceutical, and intensive industrial layouts. CE-M verified, with high-resolution display mode, adaptive filtering, programmable weight classification, two-speed dosing, and accumulation functions. Optional external thermal ticket printer.
GRAM K3W — Wireless Industrial Weighing Indicator
Wireless digital indicator with direct radio link to Xtrem® platforms up to 20 metres, removing cabling constraints from your layout. CE-M verified for legal-for-trade use. High-resolution display mode, programmable weight classification, two-speed dosing, and accumulation functions. Optional external thermal ticket printer.
GRAM K3iX-P — Digital Indicator with Integrated Printer
AISI 304 stainless steel indicator with integrated thermal ticket printer, eliminating the need for separate hardware. CE-M verified digital weighing with direct Xtrem® integration via ZLink®. Every weighing documented on the spot: date, time, totalisations, and configurable headers. High-resolution display mode, programmable weight classification, two-speed dosing, and accumulation functions.

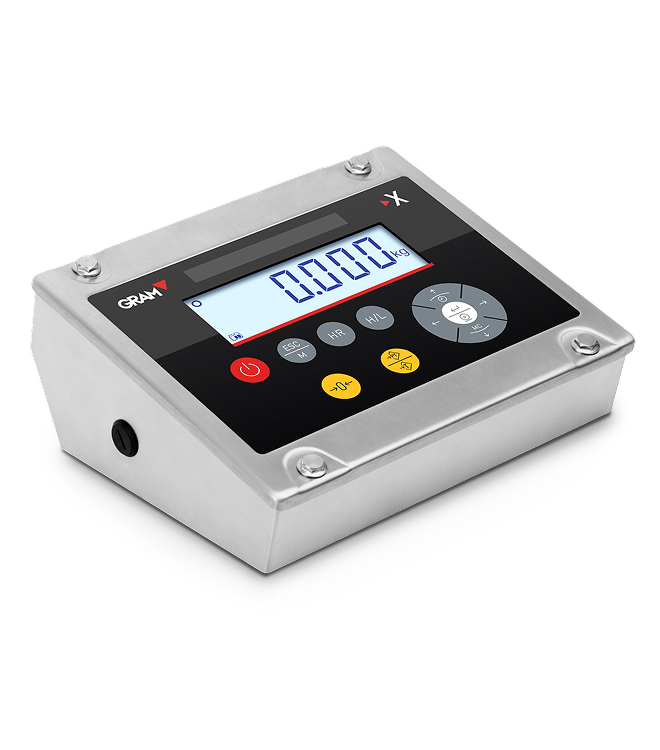

GRAM K3iX — Certified Stainless Digital Indicator
AISI 304 stainless steel digital indicator engineered for industrial environments where moisture, corrosion, or intensive use are constant. Direct Xtrem® integration via ZLink®, with no analogue signal and no recalibration. CE-M verified, with high-resolution display mode, adaptive filtering, programmable weight classification, two-speed dosing, and accumulation functions. Optional external thermal ticket printer.
GRAM K3X — Legal-for-Trade Digital Indicator
Direct digital indicator for Xtrem® platforms via ZLink®, with no analogue signal and no recalibration. CE-M verified for legal-for-trade use. High-resolution display mode, programmable weight classification, two-speed dosing, and accumulation functions. Optional external thermal ticket printer.
Performance,
by the numbers
by the numbers
Spare parts & compatibility for a
modular & scalable design
modular & scalable design
Spec 1.
Weighing Performance
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Tare Memories
Yes
Weighing Units
Platform: g, kg
Indicator:g, kg
Indicator:g, kg
Weighing Filters
Motion and animal filter settings designed to stabilise the weight display
Limits Function
Classification of products by programmable weight limits stored within internal SQL database
Spec 2.
Connectivity
Connectivity
Platform: RS-232C, Wi-Fi (optional)
Indicator: 2 × RS-232C, Ethernet, USB host
Indicator: 2 × RS-232C, Ethernet, USB host
Printer Compatibility Options
Q2, Q300, Q310, Q500 TL, Q700i, Q700i Pro, Q800i, Q800i Pro, Q810i, Q810i Pro
API
Full ERP/API integration for automated data exchange
Spec 3.
Dimensions & Construction
Material
Platform: high-strength weighing module kit, XGRAM MK uses nickel-plated steel or AISI 304 stainless steel
Indicator: Stainless Steel housing
Indicator: Stainless Steel housing
IP Protection
Platform (Junction Box): IP-67
Indicator: IP-65
Indicator: IP-65
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
Spec 1.
Weighing Performance
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Tare Memories
Memory of 20 preset tares
Weighing Units
Platform: g, kg
Indicator:g, kg
Indicator:g, kg
Weighing Filters
Motion and animal filter settings designed to stabilise the weight display
Limits Function
Classification of products by programmable weight limits stored within internal SQL databaseClassification of products by programmable weight limits stored within internal SQL database
Spec 2.
Connectivity
Connectivity
Platform: RS-232C, Wi-Fi (optional)
Indicator: RS-232C, TTL, optional USB-A output
Indicator: RS-232C, TTL, optional USB-A output
Printer Compatibility Options
Q2, PR4
API
Full ERP/API integration for automated data exchange
Spec 3.
Dimensions & Construction
Material
Platform: high-strength weighing module kit, XGRAM MK uses nickel-plated steel or AISI 304 stainless steel
Indicator: PVC
Indicator: PVC
IP Protection
Platform (Junction Box): IP-67
Indicator: unrated
Indicator: unrated
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
Spec 1.
Weighing Performance
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Tare Memories
Memory of 20 preset tares
Weighing Units
Platform: g, kg
Indicator:g, kg
Indicator:g, kg
Weighing Filters
Animal weighing function and adaptive filters
Limits Function
Programmable minimum and maximum weight limits
(red, yellow, green)
(red, yellow, green)
Piece Counting
Selectable sample sizes: 10, 25, 50 or 100 units.
Spec 2.
Connectivity
Connectivity
Platform: RS-232C, Wi-Fi (optional)
Indicator: RS-232C, TTL, optional USB-A output
Indicator: RS-232C, TTL, optional USB-A output
Battery Type / Duration
Lead-Acid Battery / 30/60h Service Time
Spec 3.
Dimensions & Construction
Material
Platform: high-strength weighing module kit, XGRAM MK uses nickel-plated steel or AISI 304 stainless steel
Indicator: AISI 304 Stainless Steel
Indicator: AISI 304 Stainless Steel
IP Protection
Platform (Junction Box): IP-67
Indicator: IP-65
Indicator: IP-65
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
Spec 1.
Weighing Performance
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Tare Memories
Memory of 20 preset tares
Weighing Units
Platform: g, kg
Indicator:g, kg
Indicator:g, kg
Weighing Filters
Animal weighing function and adaptive filters
Limits Function
Programmable minimum and maximum weight limits
(red, yellow, green)
(red, yellow, green)
Piece Counting
Selectable sample sizes: 10, 25, 50 or 100 units.
Spec 2.
Connectivity
Connectivity
Platform: RS-232C, Wi-Fi (optional)
Indicator: RS-232C, TTL, optional USB-A output
Indicator: RS-232C, TTL, optional USB-A output
Printer Compatibility Options
Q2, PR4
Battery Type / Duration
Lead-Acid Battery / 30/60h Service Time
Spec 3.
Dimensions & Construction
Material
Platform: high-strength weighing module kit, XGRAM MK uses nickel-plated steel or AISI 304 stainless steel
Indicator: AISI 304 Stainless Steel
Indicator: AISI 304 Stainless Steel
IP Protection
Platform (Junction Box): IP-67
Indicator: IP-65
Indicator: IP-65
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
Spec 1.
Weighing Performance
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Tare Memories
Memory of 20 preset tares
Weighing Units
Platform: g, kg
Indicator:g, kg
Indicator:g, kg
Weighing Filters
Animal weighing function and adaptive filters
Limits Function
Programmable minimum and maximum weight limits
(red, yellow, green)
(red, yellow, green)
Piece Counting
Selectable sample sizes: 10, 25, 50 or 100 units.
Spec 2.
Connectivity
Connectivity
Platform: RS-232C, Wi-Fi (optional)
Indicator: RS-232C, TTL, optional USB-A output
Indicator: RS-232C, TTL, optional USB-A output
Printer Compatibility Options
Q2, PR4
Battery Type / Duration
Lead-Acid Battery / 30/60h Service Time
Spec 3.
Dimensions & Construction
Material
Platform: high-strength weighing module kit, XGRAM MK uses nickel-plated steel or AISI 304 stainless steel
Indicator: ABS
Indicator: ABS
IP Protection
Platform (Junction Box): IP-67
Indicator: IP-65
Indicator: IP-65
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
Spec 1.
Weighing Performance
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Tare Memories
Memory of 20 preset tares
Weighing Units
Platform: g, kg
Indicator:g, kg
Indicator:g, kg
Limits Function
Programmable minimum and maximum weight limits
(red, yellow, green)
(red, yellow, green)
Spec 2.
Connectivity
Connectivity
Platform: RS-232C, Wi-Fi (optional)
Indicator: RS-232C, TTL
Indicator: RS-232C, TTL
Printer Compatibility Options
Q2, PR4, PR4W, PR6, PR6W
Battery Type / Duration
Lead-Acid Battery / 30/60h Service Time
Spec 3.
Dimensions & Construction
Material
Platform: high-strength weighing module kit, XGRAM MK uses nickel-plated steel or AISI 304 stainless steel
Indicator: ABS
Indicator: ABS
IP Protection
Platform (Junction Box): IP-67
Indicator: IP-65
Indicator: IP-65
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
Spare parts & compatibility for a
modular & scalable design
modular & scalable design
Indicators & Terminals
GRAM MK is fully compatible with GRAM’s digital indicator family — K3X, K3iX, K3W, K3iW — as well as the Z8 and Z8i weighing terminals, via cable or optional Wi-Fi, providing 3-colour checkweighing, advanced tare management, and totalisation.
Printers
GRAM MK works seamlessly with GRAM’s printer ecosystem through its K3 indicator compatibility — supporting the PR4 compact thermal printer and the Q2 label/ticket printer for reliable documentation and traceability. The system also supports the RD3 repeater display, providing clear, high-visibility weight information in remote or elevated positions.
Connectivity, Software & Data Integration
The GRAM MK kit offers secure connectivity through RS-232C and optional Wi-Fi, enabling direct communication with PCs, indicators, smartphones and industrial controllers.
The internal Xtrem® module stores all calibration and configuration data and can send measurements directly to any device on the IP network — including PCs, tablets and Android smartphones — without requiring an external indicator.
Compatible with Xtrem PC Software, EX Link, PW Link and the Xtrem App, it supports real-time visualisation, CSV export, QR-code output, multi-device management and remote configuration.
Mounting, Cables & Accessories
A full range of accessories is available to support installation and integration: painted or stainless-steel bases with column for indicator mounting, stainless U-tube supports, wall brackets, and ABS swivel bases.
Connectivity options include Direct K USB, RS-232 cables for RD3 and printers, K3-to-K3 remote cables, and digital add-ons such as the 3-relay output, RTC board or Wi-Fi board.
Certification & Calibration
Optionally available with ISOCAL certificates.
These provide individual calibration data and full traceability to support quality systems in accordance with ISO 9001.
Find the right solution
for your business
for your business
PRO
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Weighing Units
g, kg
Connectivity
RS-232C, Wi-Fi (optional)
Material
High-strength weighing module kit, uses nickel-plated steel or AISI 304 stainless steel
IP Protection
IP-67
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
PRO
GRAM WM
Digital weighing system to convert existing structures into industrial scales.
Request a quote
Capacity Range
2000kg up to 8000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Weighing Units
g, kg
Connectivity
RS-232C, WiFi
Material
Digital load-cell kit with nickel-plates Steel or AISI 304 Stainless Steel support elements
IP Protection
IP-67
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
PRO
Capacity Range
4000kg up to 20.000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Weighing Units
g, kg
Connectivity
RS-232C, Wi-Fi (optional)
Material
High-strength weighing module kit, uses nickel-plated steel or AISI 304 stainless steel
IP Protection
IP-67
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
PRO
GRAM WM
Digital weighing system to convert existing structures into industrial scales.
Request a quote
Capacity Range
2000kg up to 8000kg
Resolution
From 200g up to 1000g
Trade Approval
No
Weighing Units
g, kg
Connectivity
RS-232C, WiFi
Material
Digital load-cell kit with nickel-plates Steel or AISI 304 Stainless Steel support elements
IP Protection
IP-67
Plate Dimensions
Xtrem Module Dimension: 140 x 67 x 33 mm
